Petzl ZIGZAG PLUS Mechanical Prusik with Swivel
The Petzl ZIGZAG PLUS is a professional mechanical Prusik designed for arborists who want smooth, precise and efficient movement while working in the canopy.
Designed to replicate the familiar operation of a traditional Prusik pulley system, the ZIGZAG PLUS combines a friction chain, high-efficiency pulley and integrated swivel into a compact mechanical system. The result is excellent control when ascending, descending and positioning throughout the tree.
The friction chain automatically locks onto the rope when loaded, while the release lever provides smooth and progressive control when moving or descending. Pressure applied to the lever controls movement speed, giving the arborist precise control when positioning at the work site.
Integrated High-Efficiency Swivel
The major advantage of the ZIGZAG PLUS over the standard ZIGZAG is its integrated high-efficiency swivel.
Located at the lower attachment point, the swivel allows the device to naturally orient itself as the climber moves around the canopy. This helps maintain correct device positioning, reduces twisting within the system and promotes smooth rope movement through the ZIGZAG PLUS.
For arborists who spend long days moving between work positions, it's a small feature that can make a big difference to how clean and efficient the climbing system feels.
Smooth Rope Management
Taking up slack is quick and efficient thanks to the integrated pulley mounted on sealed ball bearings. Combined with the separated and curved side plates, rope feeds smoothly through the device as the climber moves.
The release lever provides precise control during descent and positioning, while the friction chain extends and automatically locks the device onto the rope when required.

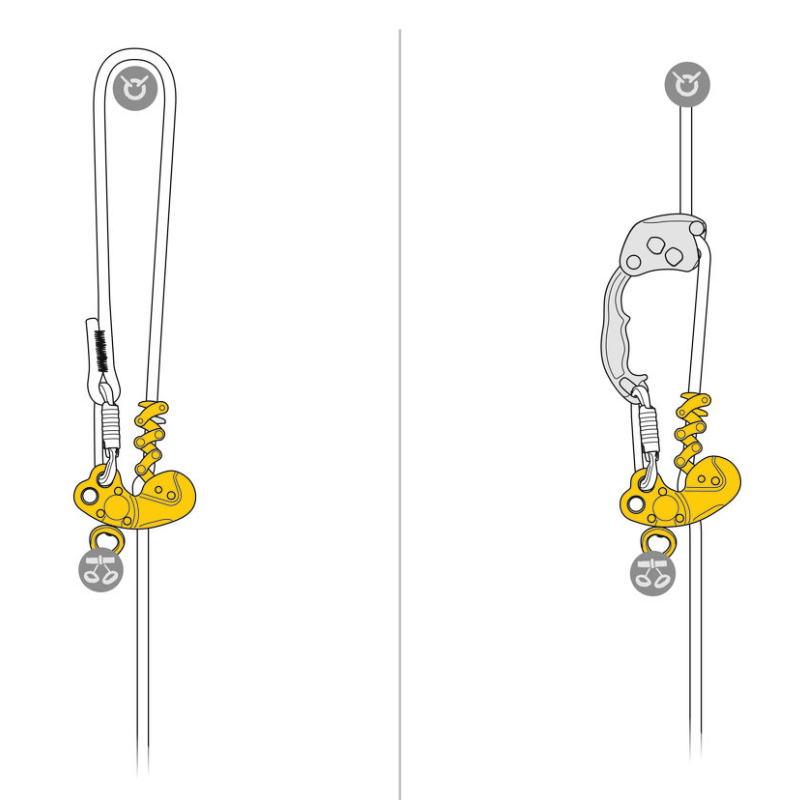

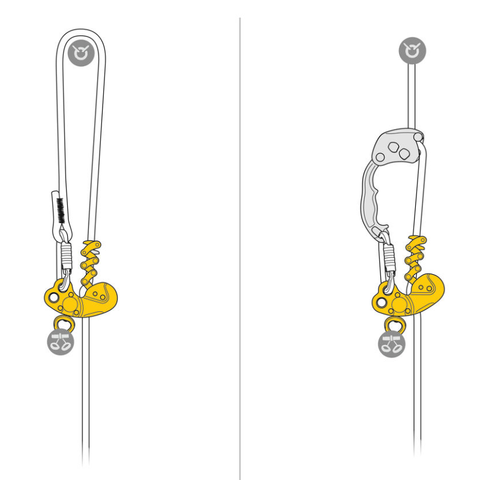

Moving Rope or Stationary Rope Systems
The ZIGZAG PLUS provides excellent versatility for professional arborists and can be configured for both moving rope systems (MRS) and stationary rope systems (SRS).
For stationary rope use, the ZIGZAG PLUS can be combined with the Petzl CHICANE auxiliary brake, providing the additional friction required for descent.
The upper attachment point can be used for the rope termination in a moving rope configuration or for connecting the CHICANE when used in a stationary rope system.
An additional auxiliary attachment point also allows connection of equipment such as a Petzl ZILLON positioning lanyard or a secondary system.
Built for Professional Tree Work
The ZIGZAG PLUS is designed for the demanding environment professional arborists work in every day.
Steel construction improves durability in high-wear areas, while the separated and curved side plates are designed to improve wear resistance. The device is compatible with 11.5–13 mm EN 1891 Type A low-stretch kernmantel ropes.
Key Features
- Professional mechanical Prusik for arborist and tree-care applications
- Familiar operation based on traditional Prusik pulley techniques
- Integrated high-efficiency swivel helps maintain correct device orientation
- Smooth and precise rope feed
- Progressive release lever provides excellent control during movement and descent
- Automatically locks onto the rope when the friction chain extends
- High-efficiency pulley mounted on sealed ball bearings
- Easy slack take-up while moving through the canopy
- Suitable for moving rope systems (MRS)
- Can be used in stationary rope systems (SRS) with the Petzl CHICANE
- Auxiliary attachment point for a ZILLON lanyard or secondary system
- Durable steel construction
- Separated and curved side plates improve wear resistance
- Compatible with 11.5–13 mm ropes
- Working load limit: 140 kg
- CE certified
Specifications
| Specification | Details |
|---|---|
| Rope Compatibility | 11.5–13 mm |
| Rope Type | EN 1891 Type A low-stretch kernmantel |
| Working Load Limit | 140 kg |
| Weight | 425 g |
| Materials | Aluminium, Steel, Nylon |
| Certification | CE |
| Reference | D022BA00 |
| Colour | Yellow |
| Manufacturer Guarantee | 3 Years |
Built for Movement in the Canopy
For professional arborists, efficiency isn't just about getting up the rope. It's about being able to move, position and reposition smoothly throughout the entire job.
The Petzl ZIGZAG PLUS combines the familiarity of a Prusik system with the efficiency of a modern mechanical device, while the integrated swivel helps keep the system correctly aligned as you move around the canopy.
Whether you're working on a moving rope system or combining it with the Petzl CHICANE for stationary rope work, the ZIGZAG PLUS provides a smooth, intuitive and highly refined climbing system for professional tree work.
