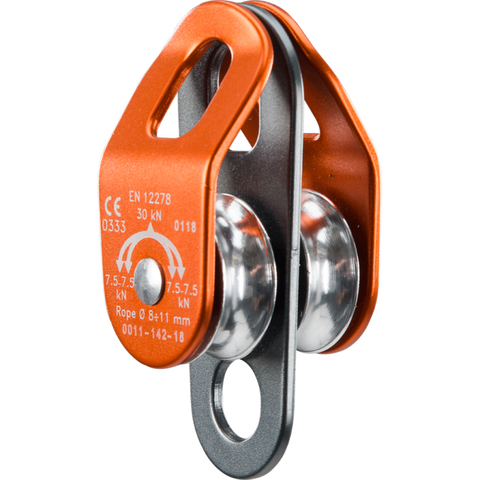

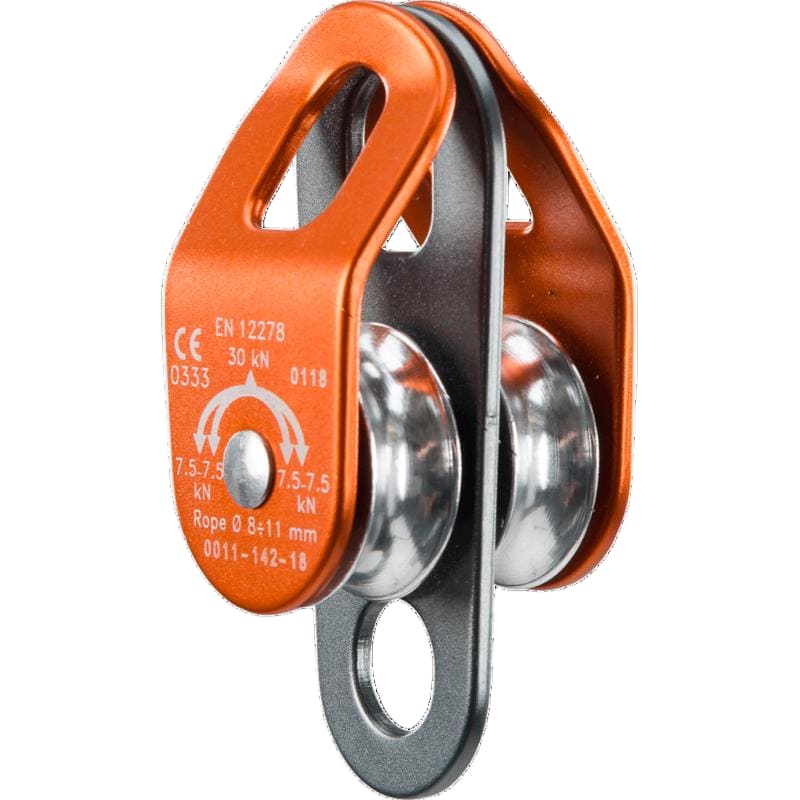

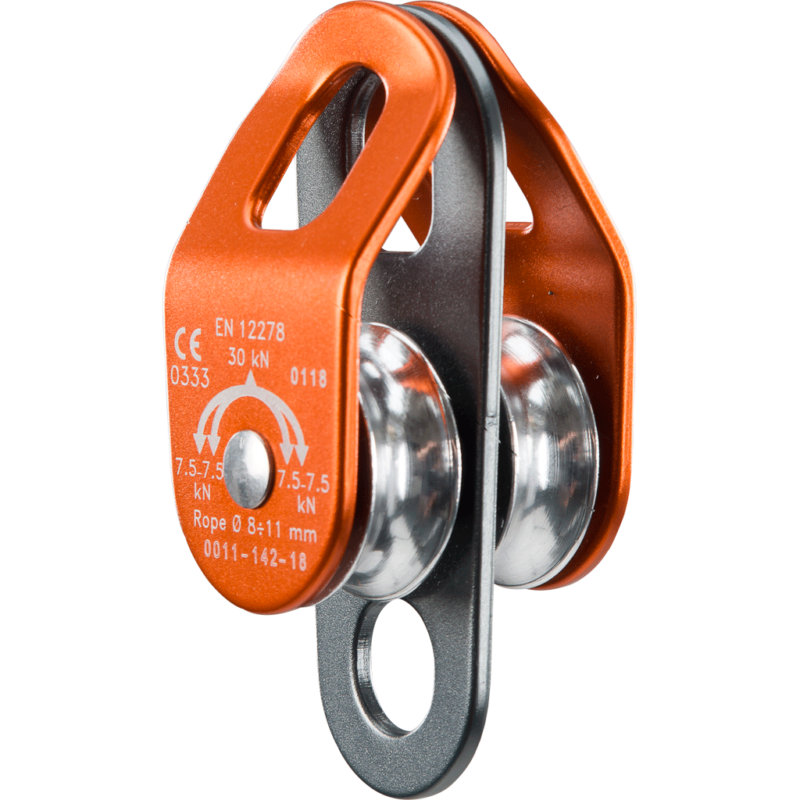

SKYLOTEC Up Roll Double Compact Pulley
The SKYLOTEC Up Roll Double Compact Pulley is designed for efficiency and reliability in mechanical advantage systems. It is a double pulley, ideal for creating auto-blocking rescue winches or lifting and pulling systems when combined with the UP LOCK pulley.
- Material: Anodized aluminum alloy side plates and stainless steel components ensure durability and strength.
- Bearing Type: High-quality ball bearings provide smooth operation and reduce friction.
- Rope Compatibility: Suitable for ropes with diameters from 8 to 11 mm, according to EN 892/EN 1891 standards, or with connectors of 8 mm diameter as per EN 564.
- Working Load Limit (WLL): 6 kN (610 kg) for safe and efficient load handling.
- Breaking Strength: Rated at 30 kN (3060 kg) for added security in critical applications.
This pulley is compact, lightweight, and designed for high efficiency, making it perfect for rescue operations and heavy lifting tasks.
