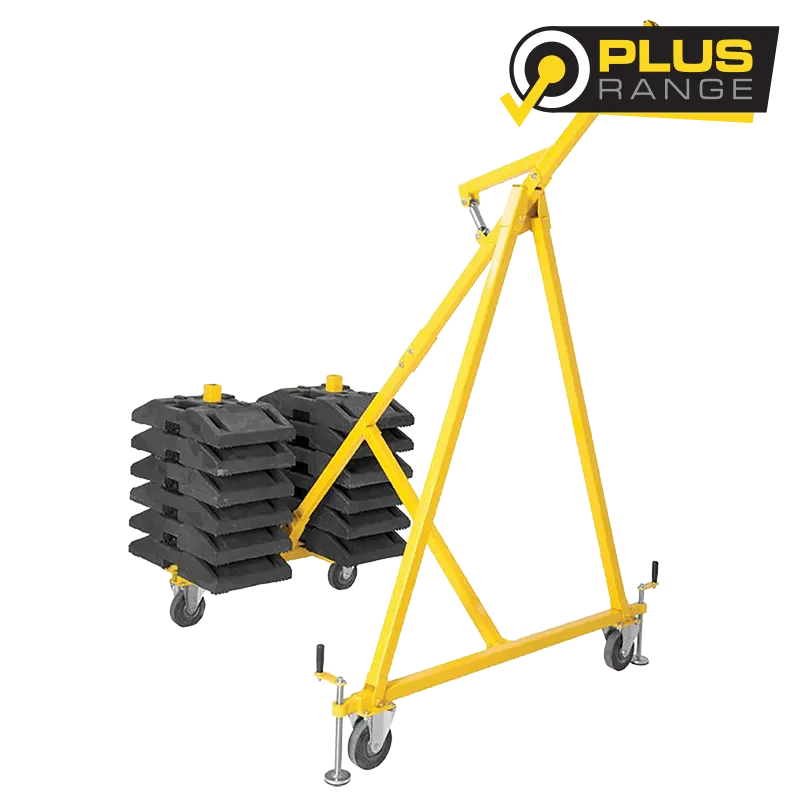

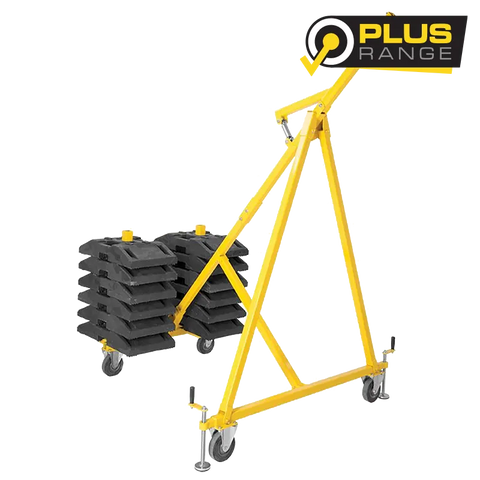

Zero DavTex Counterweighted Mobile Anchor System – 350 kg / 14 Counterweights
The Zero DavTex is a fully mobile counterweighted anchor system designed to provide safe, flexible access for rope access technicians working on modern buildings. Ideal for painting, remedial repairs, façade cleaning and general rope access applications, the DavTex eliminates the need for permanent roof anchors or penetrations that could compromise waterproof membranes.
Engineered with an extended high-point davit arm, the Zero DavTex is designed to clear glass balustrades and parapets, providing an elevated anchor point for rope access operations. Its counterweighted design eliminates the need for drilling or permanent roof fixings, making it particularly suitable for flat roofs and buildings where waterproofing integrity must be maintained.
Mounted on robust wheels, the system can be repositioned between suitable work areas, allowing technicians to access multiple drops around a building. Its modular, powder-coated steel construction allows for straightforward assembly and disassembly, typically taking approximately 15–20 minutes.
Supplied Complete with 14 × 25 kg Counterweights (350 kg Total)
Unlike the standard 12-weight configuration, Harness Equipment supplies the Zero DavTex exclusively with 14 × 25 kg counterweight plates, providing the counterweight configuration required to meet the IRATA 15 kN static test force requirement.
This ensures customers receive the complete counterweight package without needing to purchase additional weights separately.
Compliance & Load Ratings
The Zero DavTex is designed and tested in accordance with:
-
EN 795:2012 – Type B Anchor Device
-
CEN/TS 16415:2013 – Multi-user Anchor Device
-
IRATA Document F3.4 – Counterweight Anchor Requirements
Supplied Configuration – 350 kg Counterweight Package
-
14 × 25 kg counterweight plates included
-
350 kg total counterweight
-
Meets the IRATA F3.4 minimum 15 kN static test force requirement, with manufacturer testing conducted at 16 kN.
-
Suitable for 2 users simultaneously under the stated IRATA configuration.
-
Manufacturer's EN 795 / TS 16415 configuration provides for up to 3 users simultaneously, subject to the applicable instructions and operating limitations.
All 14 counterweights are included in the advertised price. No additional counterweight upgrade is required for the manufacturer's specified IRATA configuration.
Key Benefits
-
No roof penetrations – Counterweighted design eliminates the need for permanent fixings through roof membranes.
-
High-point anchor – Designed to clear parapets and glass balustrades for rope access operations.
-
Mobile and versatile – Integrated wheels allow repositioning around suitable roof areas.
-
350 kg counterweight package included – Supplied with all 14 × 25 kg plates as standard.
-
IRATA counterweight configuration – Supplied with the counterweight quantity specified for the 15 kN requirement.
-
Multi-user capability – Up to 3 users under EN 795 / TS 16415, or 2 users under the stated IRATA configuration.
-
Fast assembly – Modular construction allows setup and pack-down in approximately 15–20 minutes.
-
Durable construction – Powder-coated steel components, with individual components weighing less than 25 kg.
-
Rescue applications – Suitable for appropriately planned rescue operations within the manufacturer's specified limitations.
Ideal Applications
-
Rope access painting and remedial repairs
-
Façade and window cleaning
-
Building maintenance and inspections
-
Roof areas where permanent anchor installation is impractical
-
Buildings with waterproof membranes or sensitive roof surfaces
Included Counterweight Configuration
| Specification | Supplied Configuration |
|---|---|
| Counterweight plates | 14 × 25 kg |
| Total counterweight | 350 kg |
| IRATA static test force requirement | 15 kN |
| Manufacturer's stated test force | 16 kN |
| IRATA configuration | 2 users |
| EN 795 / TS 16415 configuration | Up to 3 users |
Important Safety & Usage Information
Before purchasing, installing or using this system, users must read and understand the manufacturer's instruction manual and all relevant technical documentation.
It is the purchaser's and user's responsibility to ensure the system is suitable for their intended application, correctly configured and operated in accordance with the manufacturer's instructions, applicable Australian Standards, IRATA requirements (where applicable) and site-specific safety procedures.
Particular attention must be given to counterweight requirements, roof suitability, system positioning, user limitations and rescue planning.
The inclusion of 14 counterweights does not remove the requirement to assess site conditions and follow the manufacturer's installation and operating instructions.
Failure to follow the manufacturer's instructions or correctly install and operate the system may compromise its safety and performance.
Delivery Information
THIS ONLINE ITEM IS FOR PICKUP ONLY.
Freight can be arranged upon request. Please contact sales@harnessequipment.com.au for a delivery quotation.
