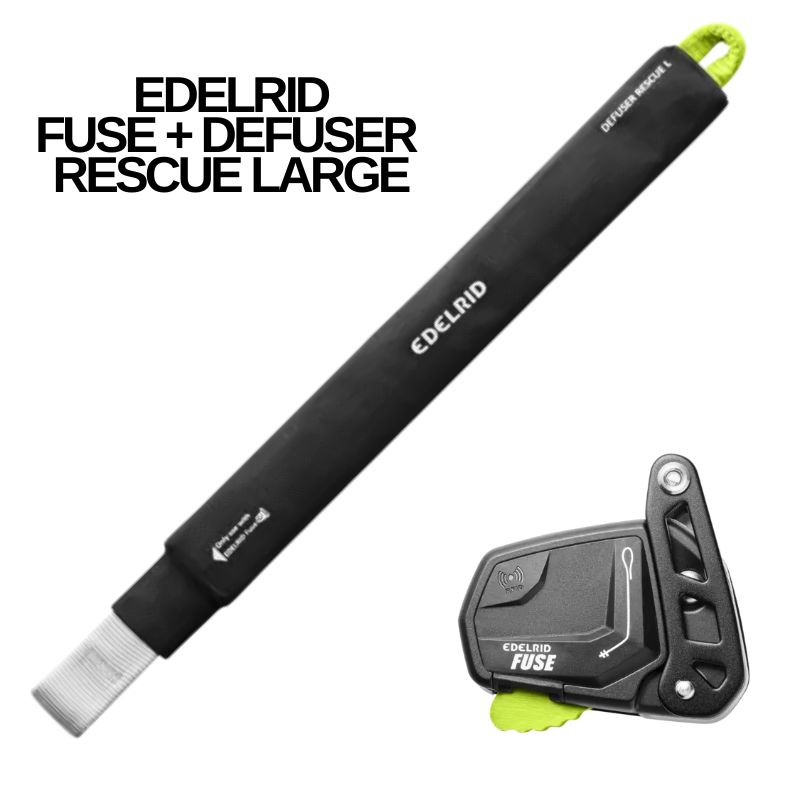

EDELRID FUSE + DEFUSER RESCUE L Fall Arrester Kit
The EDELRID FUSE + DEFUSER RESCUE L Kit combines EDELRID's premium guided-type fall arrester with the high-capacity DEFUSER RESCUE L energy absorber, creating a professional backup system specifically suited to rope access, industrial work at height and rescue applications.
Designed to run exceptionally smoothly along the safety rope, the FUSE follows the technician with minimal resistance during normal movement while providing rapid fall arrest when required.
Combined with the DEFUSER RESCUE L, the system provides additional capacity for rescue scenarios with a maximum user load of up to 220 kg, making it particularly valuable for rope access technicians where a casualty may need to be transferred onto the rescuer's system.
Built for Rope Access
A backup device should follow you up and down the rope without becoming something you constantly need to manage.

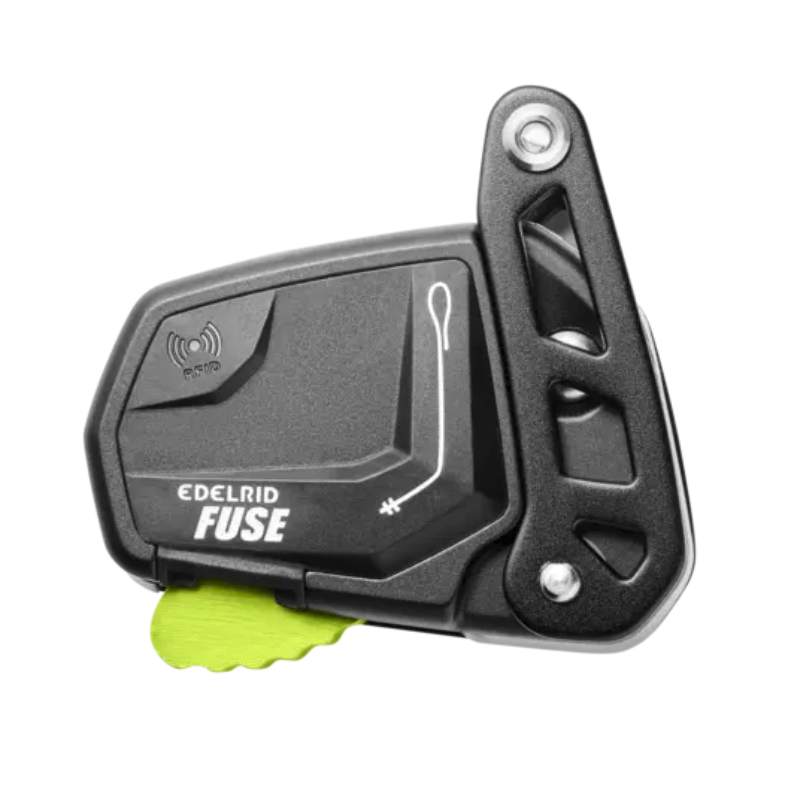

The EDELRID FUSE has been designed to travel exceptionally smoothly along the rope from the first metre, helping reduce the need for technicians to manually reposition their backup device as they move.
Its innovative design separates the blocking mechanism from the speed-dependent activation mechanism, allowing the device to move freely during normal use while activating the clamping cam when movement exceeds 2 m/s.
Unlike traditional toothed fall arrest devices, the FUSE uses a toothless clamping cam. This helps reduce rope wear and potential rope damage while also allowing the blocking mechanism to be released without completely removing the load from the device.
DEFUSER RESCUE L – Built for Rescue Loads

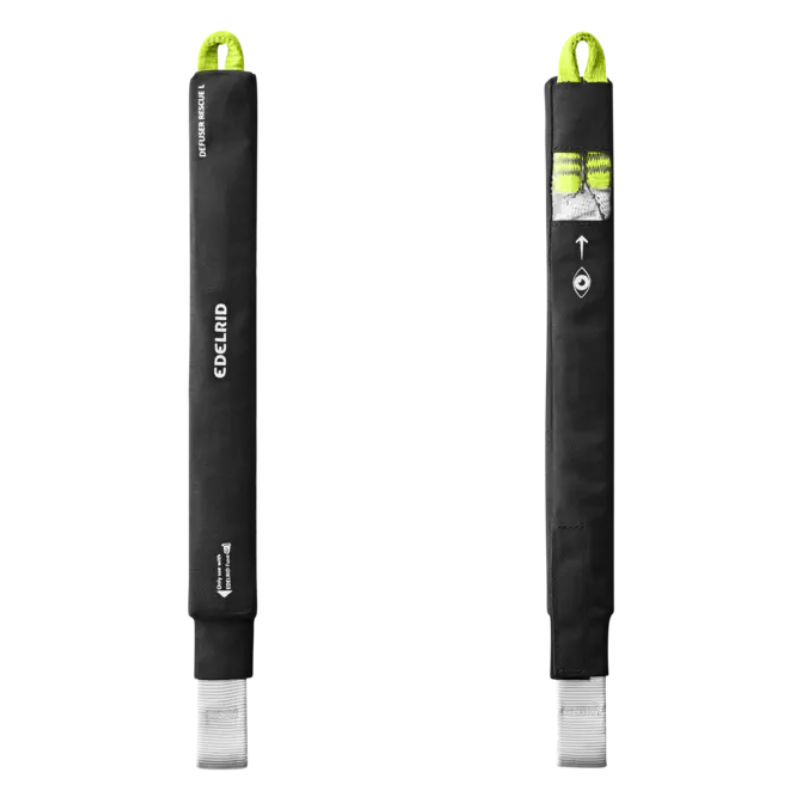

This kit includes the DEFUSER RESCUE L, EDELRID's longer, high-capacity energy absorber designed specifically for use with the FUSE.
With a maximum user load of up to 220 kg, the DEFUSER RESCUE L provides additional capacity for technicians carrying heavy equipment and, importantly, for rescue situations where the rescuer may need to support the weight of a casualty on their own system.
The elongated 400 mm design also provides additional distance between the technician and the backup rope, helping create a clearer working area around the harness.
A built-in inspection window allows the condition of the energy absorber to be visually checked before use.
Reduced Arrest Forces
When used with the appropriate DEFUSER energy absorber, EDELRID states that the FUSE system produces an arrest force approximately 30% below the legally established maximum.
This provides a highly refined fall-arrest system designed not only to stop a fall, but also to better manage the forces generated during the arrest.
Lock Function for Work Positioning
The FUSE incorporates a practical lock function that allows the clamping mechanism to be activated when required.
This can assist with maintaining a taut backup system while working and can also help prevent unwanted rope sag, particularly when ropes are affected by wind.
Easy Installation and Rope Management

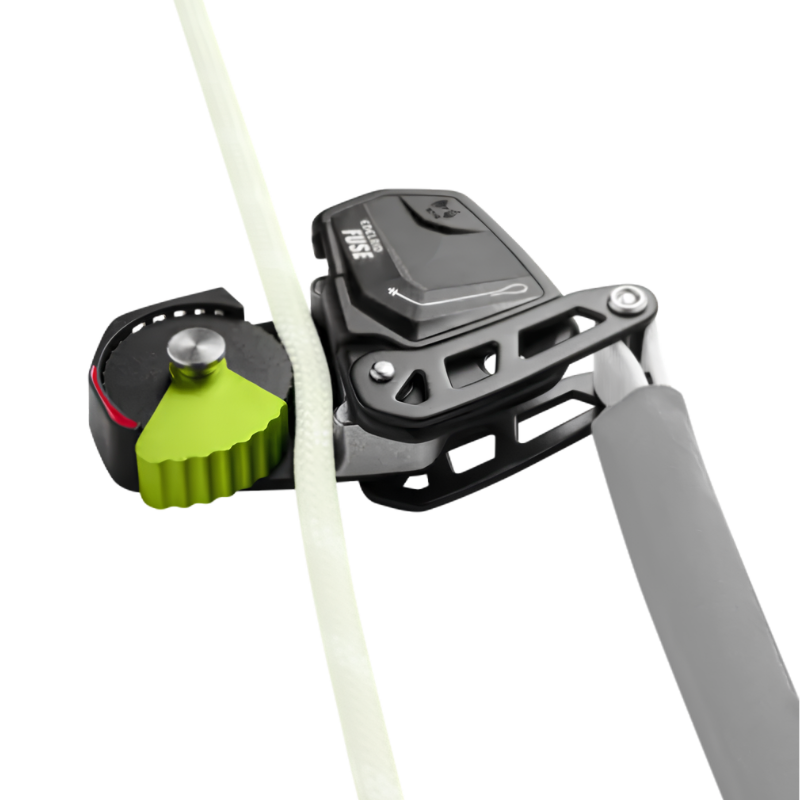

The FUSE can be attached to or removed from the rope without disconnecting it from the carabiner, making installation and transitions straightforward while helping keep the device connected to the technician's system.
The device is designed for use with 10–12 mm ropes, giving rope access teams flexibility when integrating it into their existing rope systems.
Integrated NFC Chip
An integrated NFC chip helps simplify PPE identification, inspection and equipment management.
Using a compatible NFC-enabled device, the FUSE can be incorporated into digital PPE inspection and asset-management systems, particularly useful for rope access companies managing larger equipment fleets.
Key Features
Complete FUSE + DEFUSER RESCUE L fall-arrest system
Designed for professional rope access, rescue and work-at-height applications
DEFUSER RESCUE L provides a maximum user load of up to 220 kg
Particularly suited to rescue scenarios involving the additional weight of a casualty
Exceptionally smooth movement along the safety rope
Speed-dependent activation system
Clamping cam activates at speeds exceeding 2 m/s
Toothless clamping cam helps reduce rope wear and damage
Blocking mechanism can be released without completely unloading the device
Integrated lock function
Lock function can help maintain a taut backup system and reduce rope sag in windy conditions
Can be installed and removed from the rope without disconnecting it from the carabiner
DEFUSER RESCUE L features a 400 mm elongated design
Inspection window allows quick visual checking of the energy absorber
Arrest force approximately 30% below the legally established maximum
Compatible with 10–12 mm rope
Approved for horizontal applications
Integrated NFC chip for PPE documentation and equipment management
Specifications
Specification Details
Kit Components EDELRID FUSE + DEFUSER RESCUE L
Device Type Guided-Type Fall Arrester
Approved Rope Diameter 10–12 mm
Maximum Load with DEFUSER RESCUE L Up to 220 kg
DEFUSER RESCUE L Length 400 mm
DEFUSER Material Polyester / HMPE
FUSE Lock Function Yes
NFC Identification Yes
Horizontal Application Approved
Certification EN 12841-A
Certification EN 353-2
Certification ANSI Z359.15
Additional Approval PPE-R/11.075
A Backup System Designed with Rescue in Mind
For rope access technicians, a backup device needs to do more than simply arrest a fall. It needs to follow smoothly, stay out of the way during normal work and integrate properly into the technician's rescue system.
The EDELRID FUSE + DEFUSER RESCUE L Kit delivers exactly that.
The smooth-running FUSE provides an efficient everyday backup device, while the higher-capacity DEFUSER RESCUE L gives technicians additional capability when things don't go to plan.
With a 220 kg maximum load capacity, horizontal-use approval, reduced arrest forces, 10–12 mm rope compatibility and integrated rescue capability, this is a serious fall-arrest solution for professional rope access and industrial work-at-height teams.
