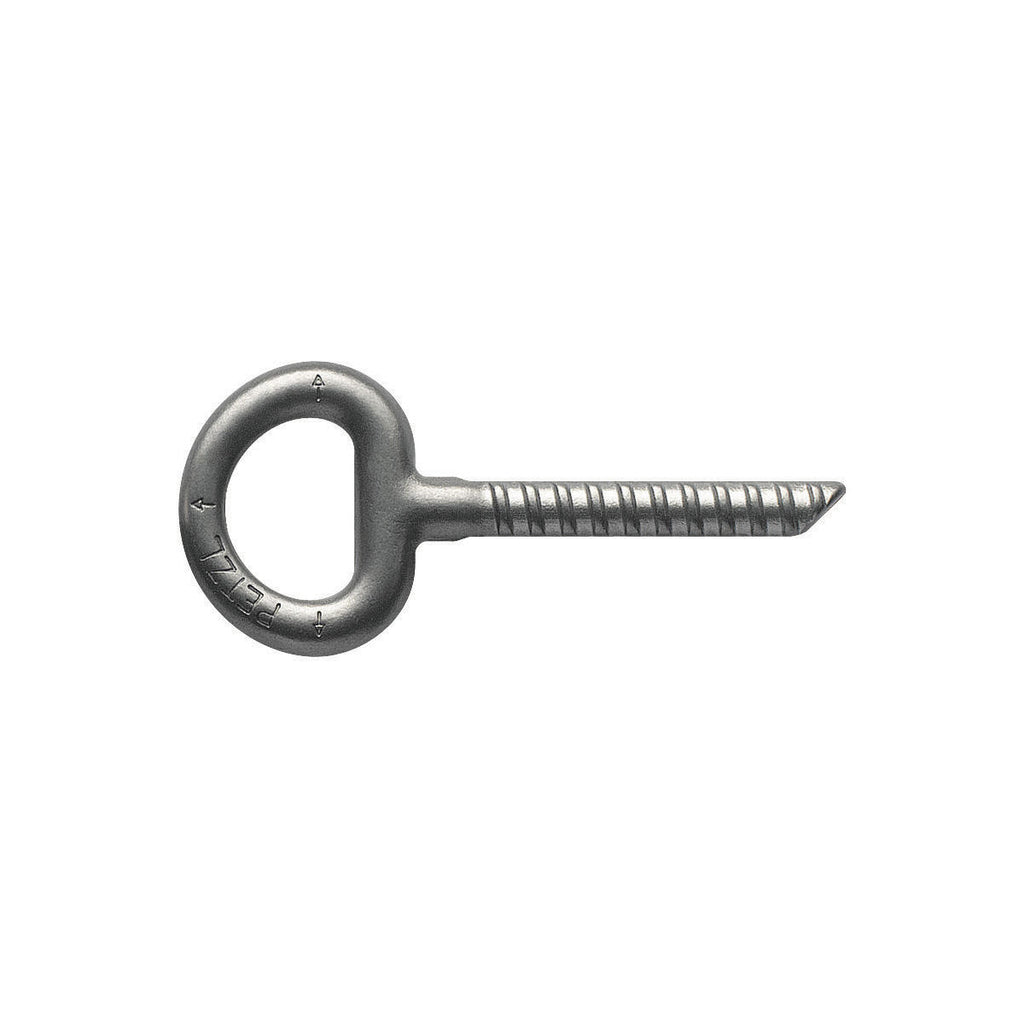

PETZL Collinox Anchor
The PETZL Collinox Anchor is a premium forged stainless steel resin anchor designed specifically for long-term installation in climbing and industrial anchor systems. Engineered to ensure optimal safety and durability, this 10 mm diameter bolt anchor offers exceptional strength and corrosion resistance, making it ideal for use in various rock types and concrete structures.
Key Features
- Made from high-quality forged stainless steel for maximum durability and corrosion resistance.
- Textured stem design facilitates excellent placement and adhesion of resin, ensuring a secure hold.
- Certified to EN 959 standards, guaranteeing compliance with strict safety requirements.
- Specifically designed for long-term installations in climbing walls, rock faces, and concrete.
- Compatible with Petzl’s G101AA00 resin glue and other approved adhesives for reliable bonding.
Technical Specifications
| Diameter | 10 mm |
|---|---|
| Weight | 95 g |
| Length | 7 cm |
| Drilling Diameter | 12 mm |
| Drilling Depth | 7 - 7.5 cm |
| Shear Strength in 50 MPa Concrete | 25 kN |
| Pull-out Strength in 50 MPa Concrete | 15 kN |
| Guarantee | 3 years |
| Certification | EN 959 |
Installation Recommendations
The Collinox Anchor is suitable for installation in granite, gneiss, limestone, sandstone, and high-quality concrete. Preliminary testing is recommended for different rock hardness levels and concrete grades to confirm performance. The textured stem enhances resin bonding, creating a strong, lasting anchor point.
Suggested drying time for resin adhesive is between 40 minutes and 10 hours, depending on environmental conditions and adhesive type used.
