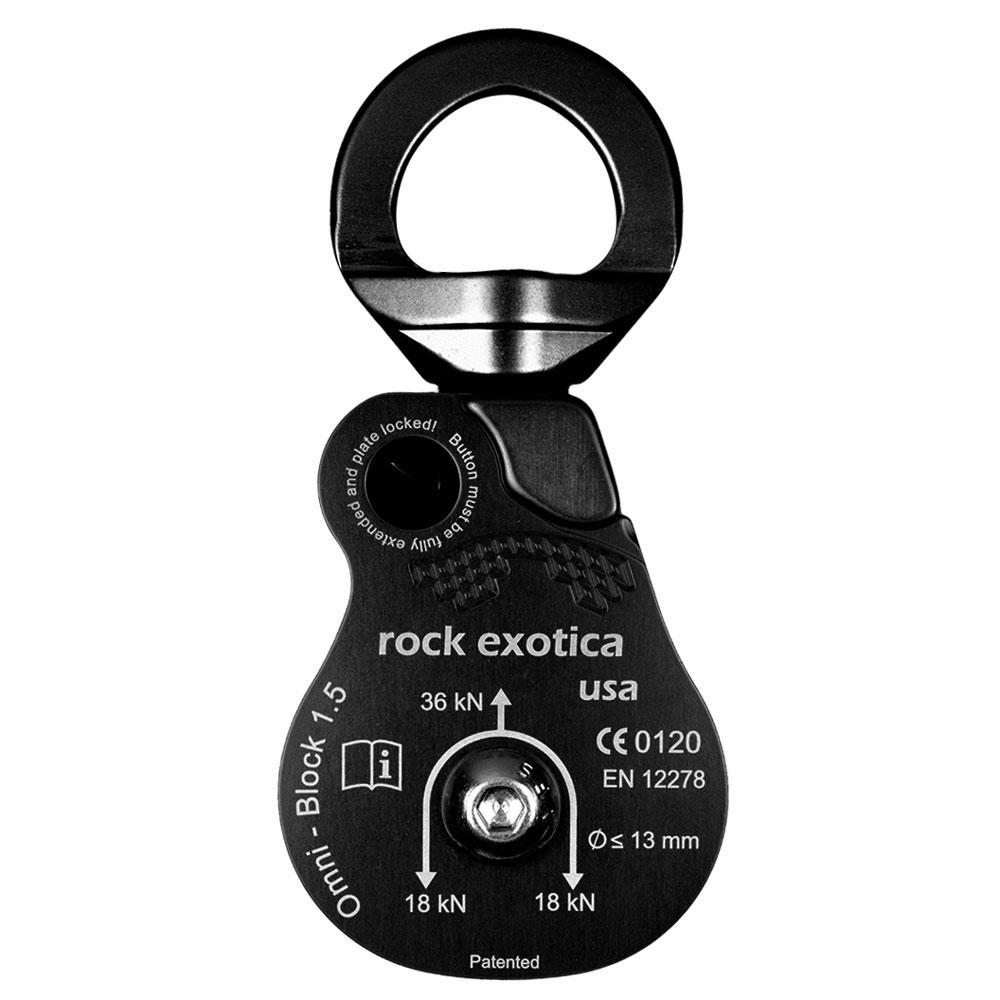

The Omni-Block combines a swivel and pulley into one tool, and incorporates a unique side plate that opens while the pulley is still attached to the anchor.
Available in single and double sheave versions from 1.1" radius up to 2.6". Made in the USA.
- Allows rope change without detachment from carabiner
- The integrated swivel top allows the pulley to orient as needed in response to the load.
- Pulley body is machined from a solid block of aluminum for strength optimization and weight reduction.
- Shortens the length of rigging by combining the pulley and swivel in one device.
Weight: 9.2 oz (256 gm)
Rope diameter: 13 mm
Sheave diameter: 1.5" (38 mm)
Break strength: 36 kN
Working load: 8 kN
Height: 5.3" (135 mm)
Width: 2.5" (63 mm)
